FEATURE
No need of Marker and sticker
VTrack precisely analyzes both the ball and the club
– no markers or stickers required. Supports both left and right-handed player

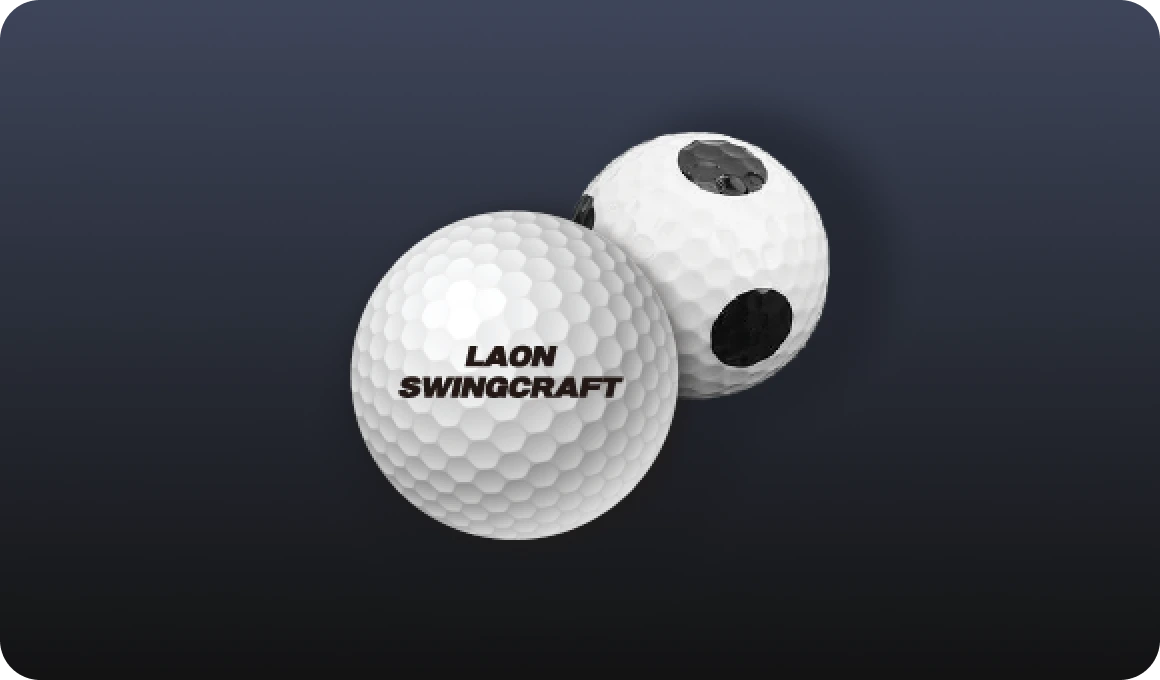

With a single setup, both left-handed and right handed users can use it.Supports any ball
Recognizes not only marked balls but also regular balls

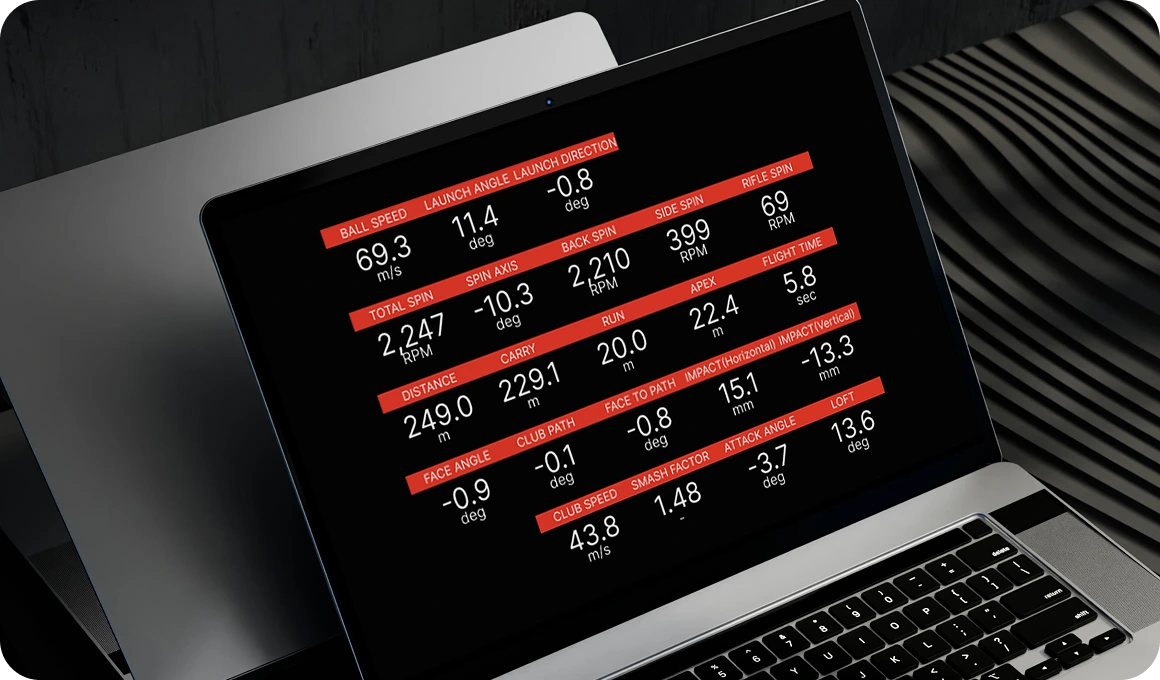

for unrestricted play.Extensive data analysis
Provides a total of 23 types of club, ball, and flight data in real time for precise and objective swing analysis.Club data (8 types): club speed, face angle, attack angle etcBall data (7 types): ball speed, launch angle, spin etcShot/Aviation data (8 types): carry, total distance, run
0.2sec rapid analysis
Deliver analysis result within 200~250ms after each impact, ensuring delay-free play.Massive hitting zone
Offers a wide detection area of up to 800 x 600mm(31” x 24”)
for a unrestricted swing environment.Auxiliary function for perfect play
In addition to its core features, VTrack includes convenient tools that enhance both installation and gameplay.

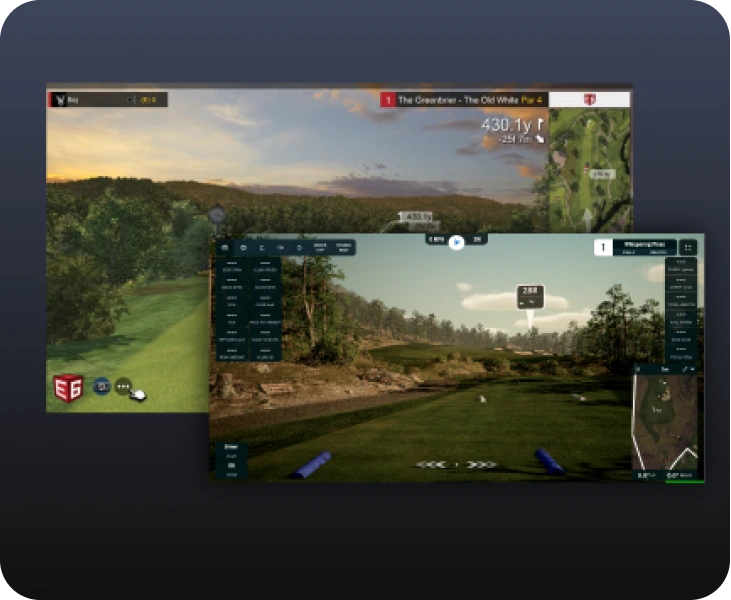

Fully compatible with
leading simulatorSeamlessly integrates with
major 3rd-party simulators
such as E6 Connect, E6 Apex, and GSPro.
Quick installation in
just two stepsYou can complete the setup easily in
just two steps.

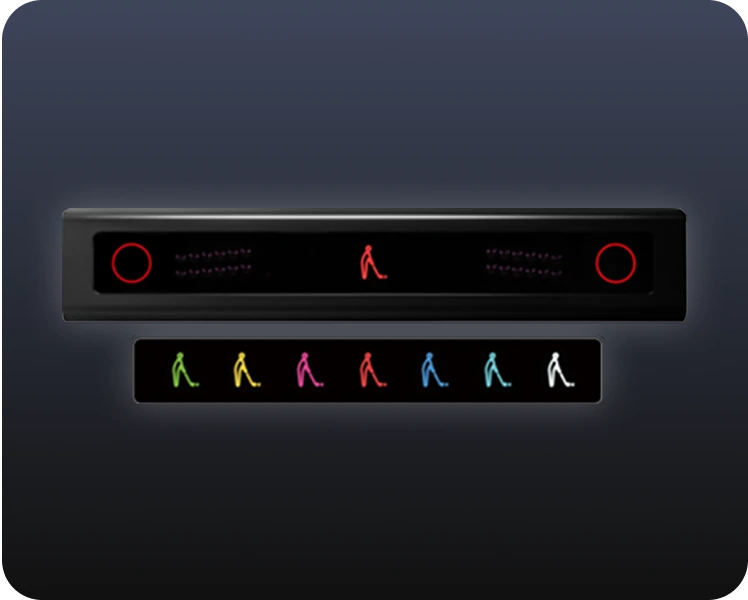

Mark each sequences with seven color indicatorsClearly show the sequence per users with seven-colors indicator.
Provides a proprietary
driving range developed in-house
VTrack,
the Global Choice, built on proven reliablity
VTrack is trusted by leading global partners and golf platforms, backed by a proven track record of large-scale deployments and outstanding reliability.Kakao VX
20,000+ units suppliedLess than 1% defect rate
GTS
700+ supplied
Voice Caddie
600+ supplied
Official reseller network in America, Canada and Australia
Reliable global supply chain such as Sota Sims Golf, YourSwing.ca, Bayside Golf etc
SPEC
VTrack specifications

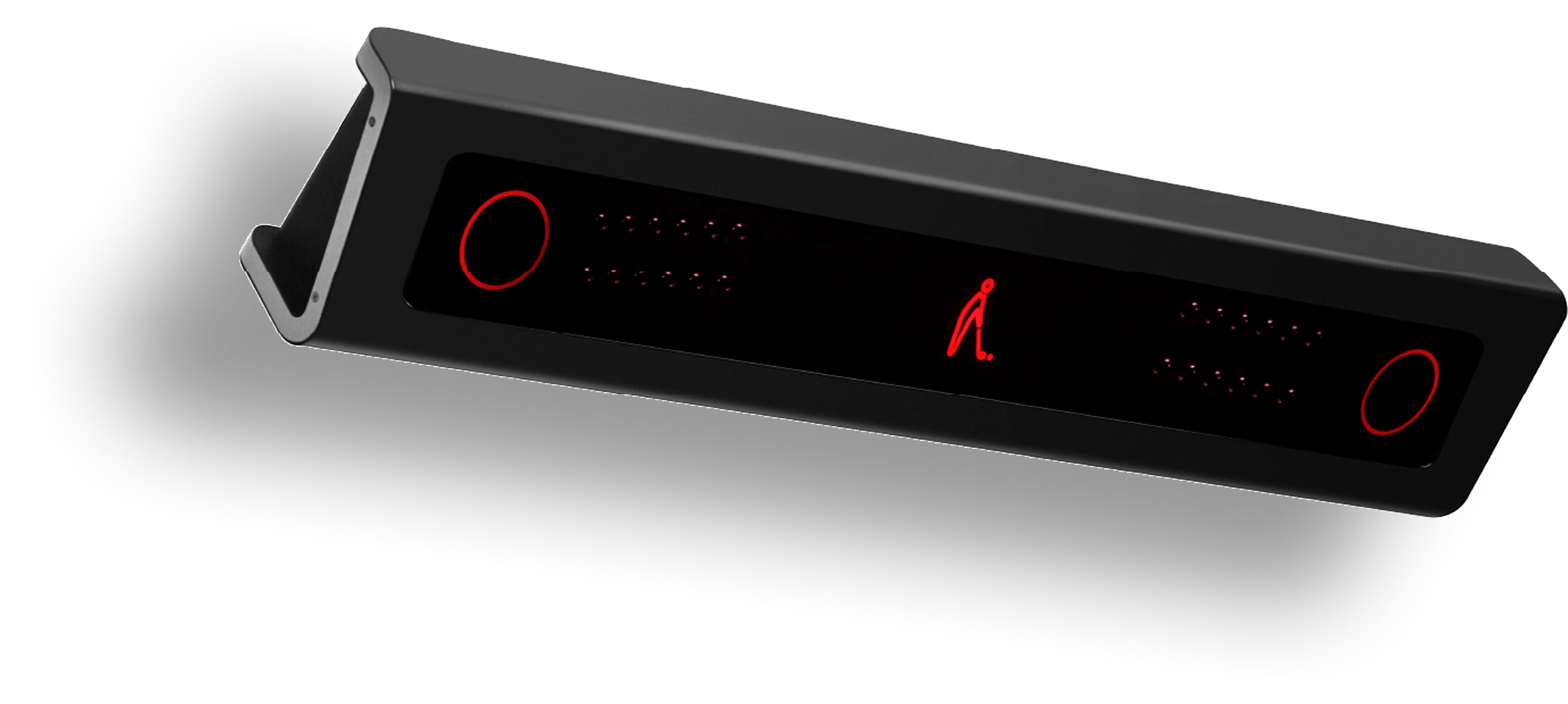

VTrack DX10
Ceiling-mounted launch monitorWide hitting area (31” × 21”)Dual stereoscopic cameras supporting up to 1,800 fpsProvides 23 ball and club data pointsCompatible with major third-party simulators such as E6 Connect and GSProNo club sticker required
Ceiling-mounted launch monitorWide hitting area (31” × 21”)Dual stereoscopic cameras supporting up to 1,800 fpsProvides 23 ball and club data pointsCompatible with major third-party simulators such as E6 Connect and GSProNo club sticker requiredInstallation Space requirementsImpact Screen ↔ Hitting Zone: minimum 9.8ft (≈ 3m)Floor ↔ Ceiling: 8.6 ~ 10ft (≈ 2.7 ~ 3.1m)Room Width (Minimum): 17.7ft (≈ 5.4m)
Impact Screen ↔ Hitting Zone: minimum 9.8ft (≈ 3m)Floor ↔ Ceiling: 8.6 ~ 10ft (≈ 2.7 ~ 3.1m)Room Width (Minimum): 17.7ft (≈ 5.4m)Specification
operating system
Windows 10 (64bit)
CPU
Dual core 3.0GHz or higher
(Intel Core i5 or AMD Ryzen recommended)
Memory (RAM)
16GB or higher
Storage (HDD/SSD)
100GB or more available disk space
Network
(Gigabit Ethernet Interface)
Chipset
Intel Pro/1000-class chipset(recommended)
NIC supporting Jumbo Packet(recommended)
NIC supporting Receive Descriptors of 2048 or higher(recommended)
Network Card (NIC Card)
EXPI9301CT(single-channel Intel NIC)recommended
